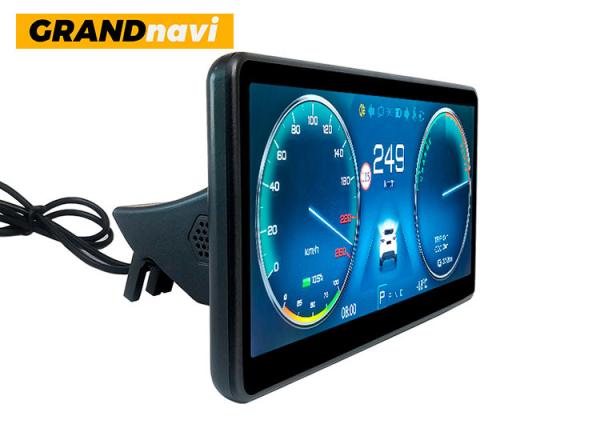

Vehicle Dashboard For Tesla Lcd Dashboard Touch Screen Style
Console Digital Lcd Display 9inch
specification:
1.Operation System : Linux
2.Language:English/Chinese
3.Resolution:1920*720
4.Touch Screnn: Capacitive multi-touch
5.Smart Phone Control:CarPlay Wireless,Android Auto Wired,CarLife
Wire/Wireless
6.Music Apps: Support QQ music, Wangyuyun music,Ximalaya Music and
more
7.Audio output:Build-in speaker or OEM bt connectivity.
Display Information:
1.Driving information:Lights,gear,speed,battery status
2.Safety information:seat belt warning,speed limit warning,low and
more
3.Other information:current time,ect
Hardware Configuration:
1.CPU: 8 cores (A75*2+A55*6).
2.DRAM: 2GB/4GB (optional).NONE
3.OTA upgrade: Support OTA function, car owners can upgrade
automatically with one key, more intelligent and more humane.
Product Description:
| Supported car model | Compatible with TESLA Model 3 & Model Y (Applies to all years) |
| Processor | For Intel Atom and AMD Ryzen (depending on your processor choice). |
| Steering wheel | Suitable for both left and right drive. |
| Mileage | KM/H&MP/H (Follow the original car system). Single Mileage: The
single trip mileage is accumulated from zeroclearing. Total
Mileage: Follow the original car. |
| Network/WiFi | 4G full Netcom, WiFi supports 2.4G/5G. |
| Driving information display | Speed/Gear/Battery Capacity, etc. |
| 3D dynamic car model | Dynamic, original car, classic UI styles, equipped with 3D
animation |
| Navigation | GPS, Beidou, Google Maps. |
| Video | Support RMVB, AVI, MKV, MP4 and other multi-format
ultra-high-definition video hard decoding, support 4K
high-definition video. |
| Mobile phone interconnection | Wired/Wireless CarPlay, Wired/Wireless Android Auto. |
The Scope of Work:
1.Input power: 10V+/-0.2V, > 3A (MAX 15.5V).
2.Working temperature: -20 to 70℃/-4 to 158℉ (Temperature unit: Set
the temperature unit, Celsius (℃)/ Fahrenheit (℉)
Product Host:
1.Host size: Approx.264*113mm/10.39*4.44in
2.Host weight: Approx.455g/15.69oz
